dasso Bamboo Linear Panel
dasso bamboo Linear ceilings and walls are made from solid bamboo or bamboo veneer stick on the aluminum panel for different requirements. They are suitable for all building sectors: Corporate, Transport (airports, metro-, bus -, train stations), Retail, Leisure, Public spaces, Hospitality, Healthcare, Education or Residential. When using bamboo Linear you are creating an environmentally friendly and durable building with an authentic feel, it gives you the freedom to make a natural looking wall or ceiling design.
Specifications
Product CodeSize (mm)StructureDescription
LIN-TCV-100-40L2800*W100*T40Bamboo Linear panelsCarbonized, Vertical, bamboo linear, UV-Finished

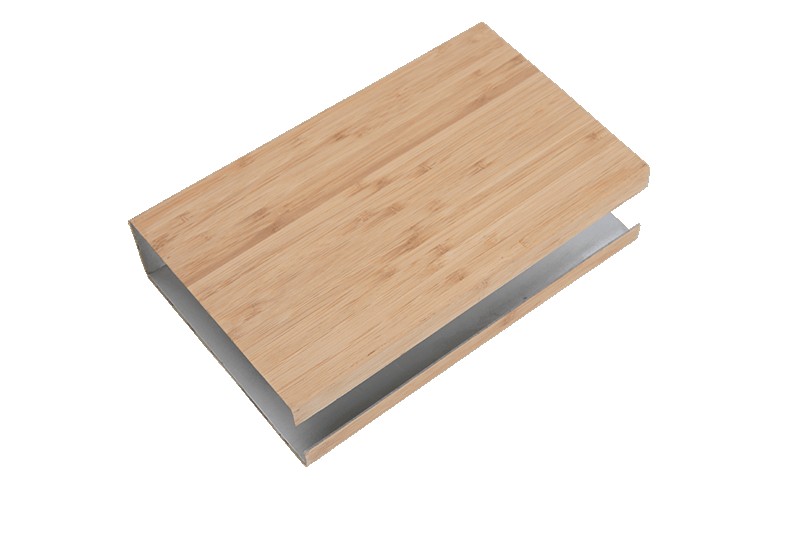

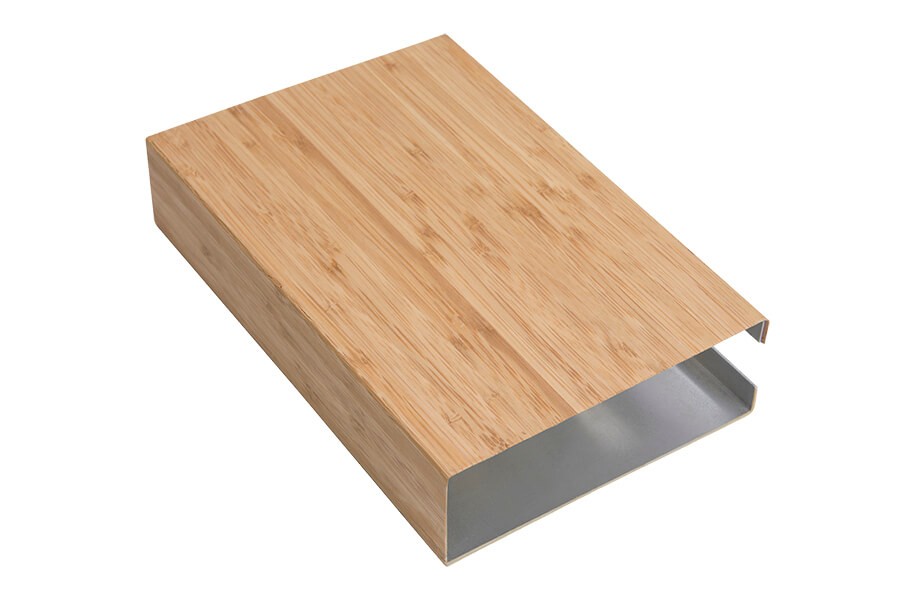

LIN-ALBV-C-120-40L1800*W120*T40Veneered Bamboo Linear Panels, U shapedVeneered bamboo linear ceilings and walls with U shaped, UV-Finished
LIN-ALBV-C-100-30
L2700/3100/5900/7000/1700*W100*T30/2.5Veneered Bamboo Linear Panels
Bamboo aluminum grille ceiling type C

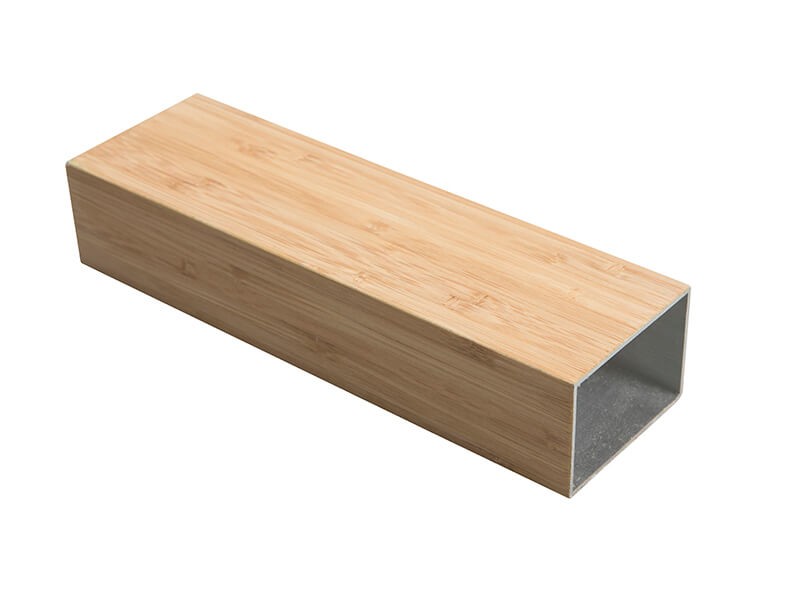

LIN-ALBV-D-60-40L2000*W60*T40Veneered Bamboo Linear Panels, Rectangular shapeVeneered Bamboo Linear ceilings and walls with rectangular shaped, UV-finished, L2000*W60*T40
LIN-ALBV-D-100-40L2000*W100*T40Veneered Bamboo Linear Panels, Rectangular shapeVeneered Bamboo Linear ceilings and walls with rectangular shaped, UV-finished, L2000*W100*T40


Benefits

Contribute to Architecture: have EPD® (Environmental Product Declaration) which contribute to green building certification program like LEED, Breeam; Projects are technically supported and developed, providing a perfect fit at site;

Easy Installation - Linear Bamboo Ceiling is easily fixed onto the carrier; Minimizing installation time and site adjustments;

Acoustics - Linear bamboo Ceilings offer high acoustic performance

Fire Protection - A higher fire-resistant grade is available in Veneered Bamboo Linear.

Eco-friendly resource - Made from bamboo, one of the fastest growing plants on earth. Each stem can be harvested after 4-6 years, and the plant continues to expand itself. FSC® available.

Natural appearance - Creates a beautiful, natural look. Veneered Bamboo Linear gives you the freedom to make a natural looking wall or ceiling design

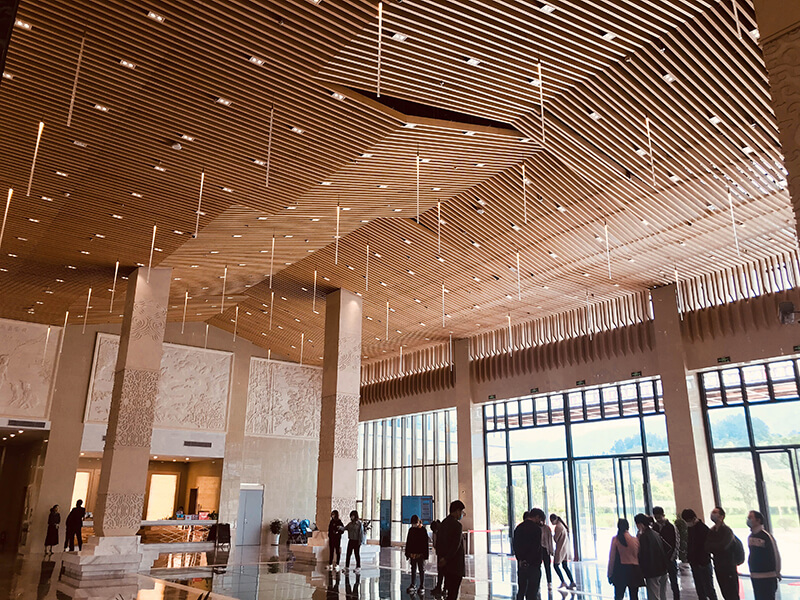

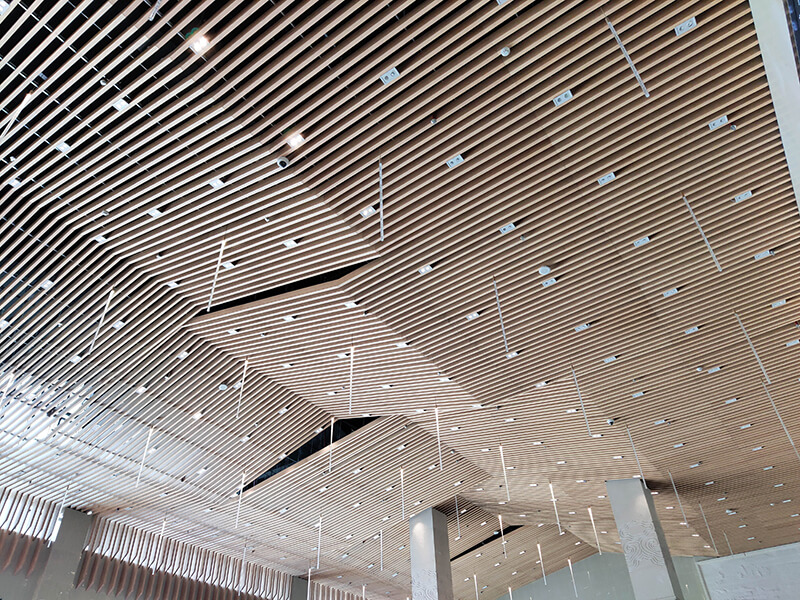

Application






Please click the following link (bimobject) for bim files.

https://www.bimobject.com/zh/dasso/product/bamboo-aluminum-linear-panel
