dassoXTR Cladding
dassoXTR Fused Bamboo Cladding is the great choice in commercial exterior siding, where it ages naturally like wood. Our unique sheathing system with FasTrak offers the most appealing looking rain screen and cladding siding solution available. It reduces wastage and speeds up installation by 50%.
Specifications

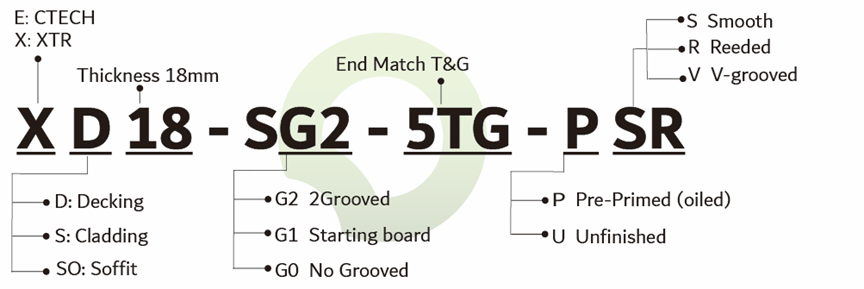

Product codeDescriptionSize(mm)SurfaceFinishRemark

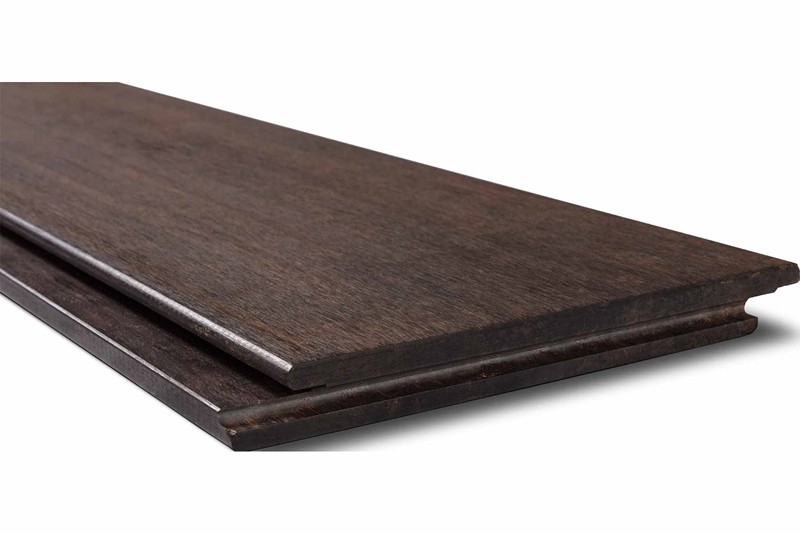

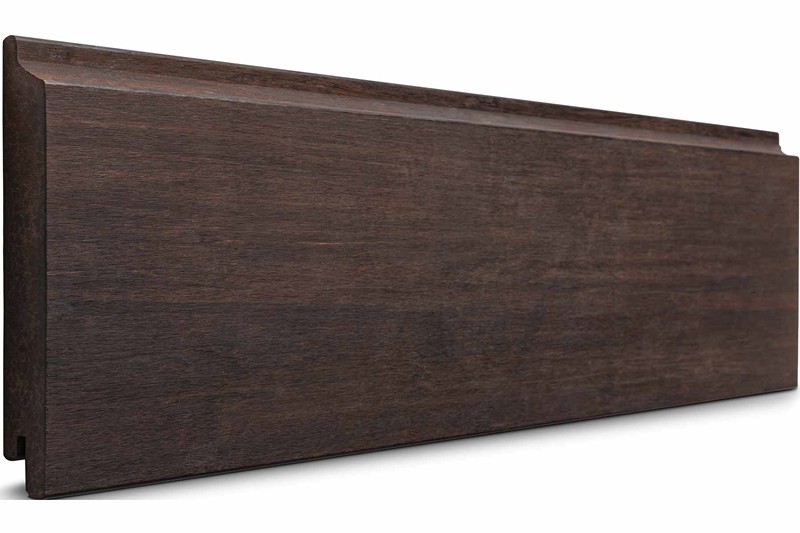

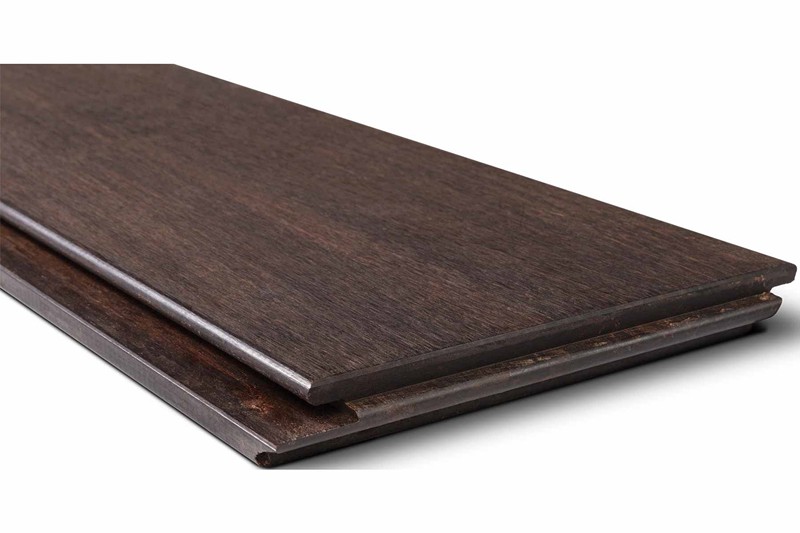

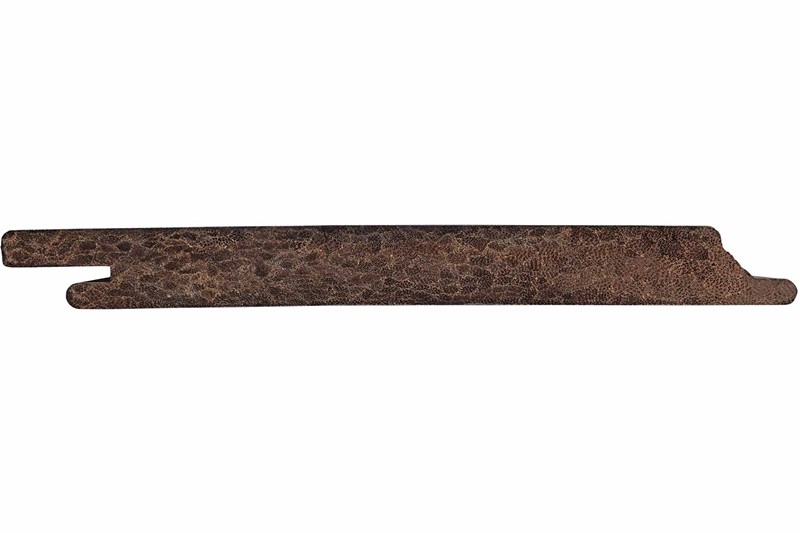

XS18-SSL-5TG-PSSdassoXTR outdoor oiled Cladding,
shiplap, T&G end match, T-18
L1850*W137*T18S/SOutdoor OiledRegular Order
XS18-SSL-5TG-PSS-L0dassoXTR outdoor oiled Cladding, T&G end match, T-18L1829*W137*T18S/SOutdoor OiledRegular Order
XS18-WSL-5TG-PSS-L0dassoXTR outdoor oiled Cladding,
shiplap, T&G end match, T-18
L1829*W178*T18S/SOutdoor OiledRegular Order
XS12-100G2-PSSdassoXTR outdoor oiled Cladding,
two long sides grooved, F&T end match, T-12
L1860*W100*T12S/SOutdoor OiledRegular Order


Benefits

  END MATCHED Installation on joists


1582682245915574.png Match Installation Available in Sheathing or Batten Installation


0资源 3123.png Hard & Durable harder than any other hardwood [EN 1534]; Durability: Class 1


资源 6.png Fire Resistance Class A / B-s1-d0; can be easily applied in public projects


0资源 2123.png Stable & Precise No head side gap between boards with T&G end match


资源 4.png Termite Resistance Class1: AS 5604; Class 8 [AWPA-2012,AWPA E1-09]


资源 3.png Mould Resistance  Class 0 [DIN EN ISO 846:1997-10] [DIN EN 152: 2011]


0资源 4123.png 25 - Year Limited Warranty


0资源 3.png Environment Friendly Bamboo ready for harvest after 4-6 years [compared to up to 100 years for hardwood species] – no deforestation

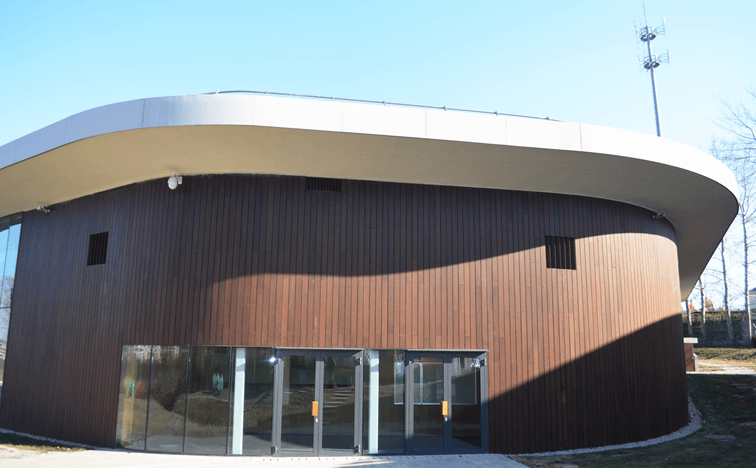

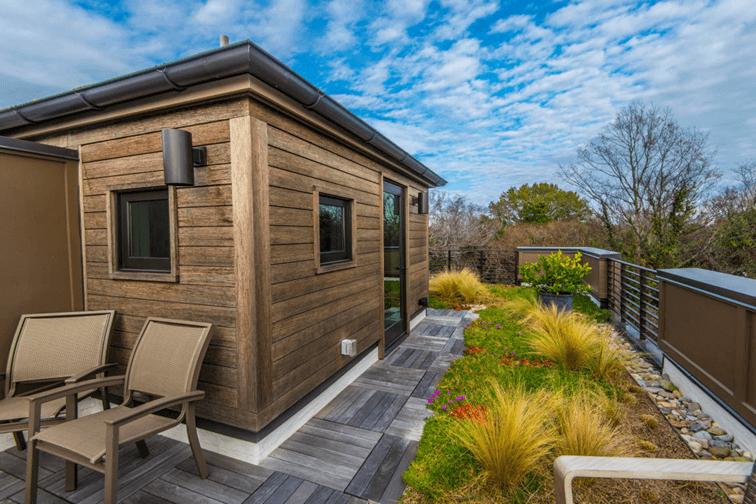

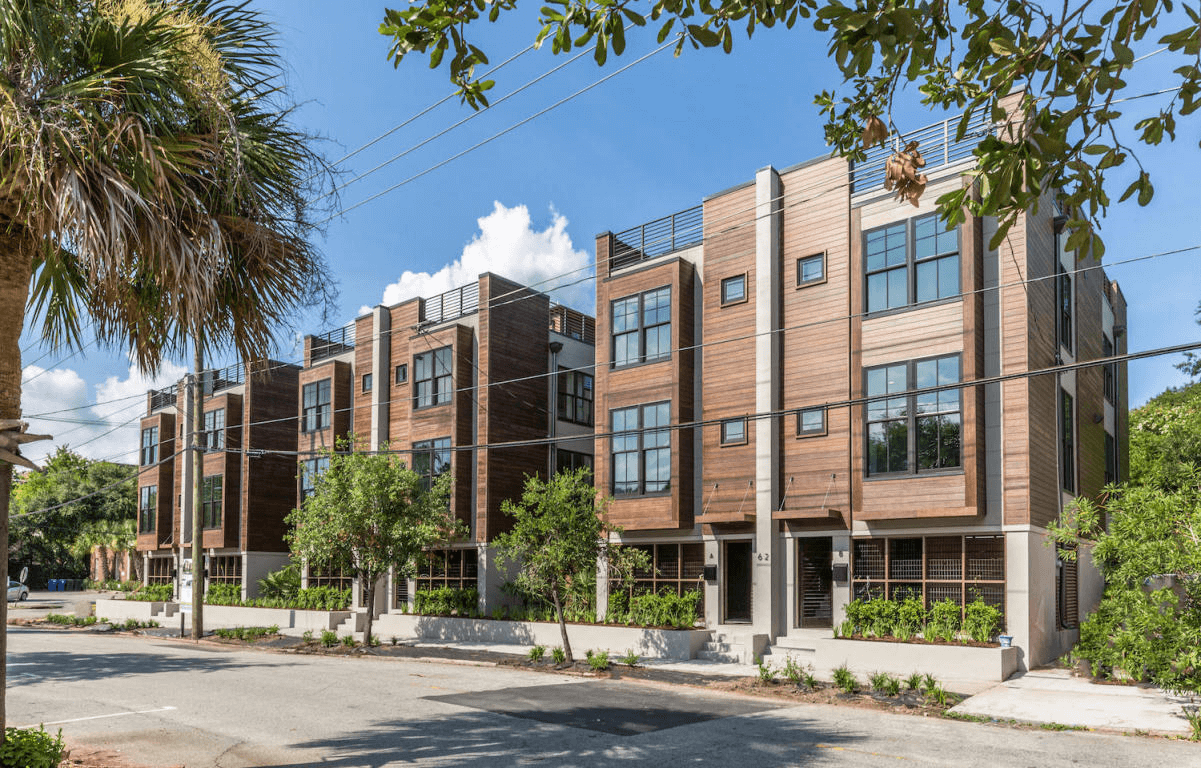

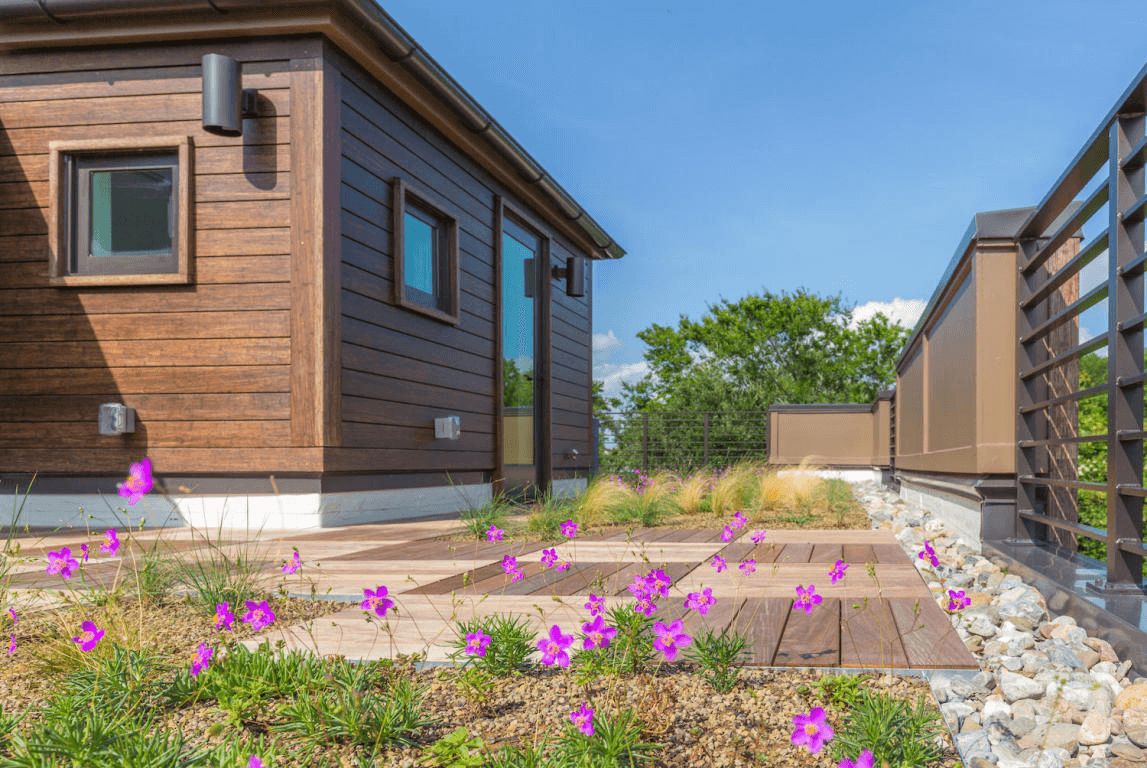

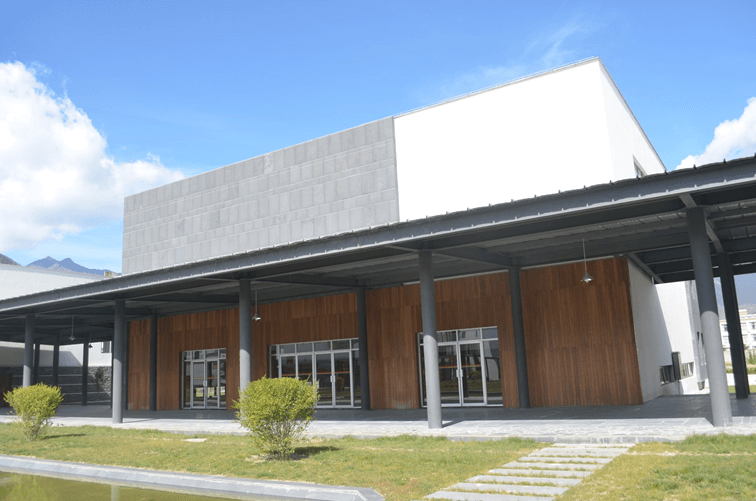

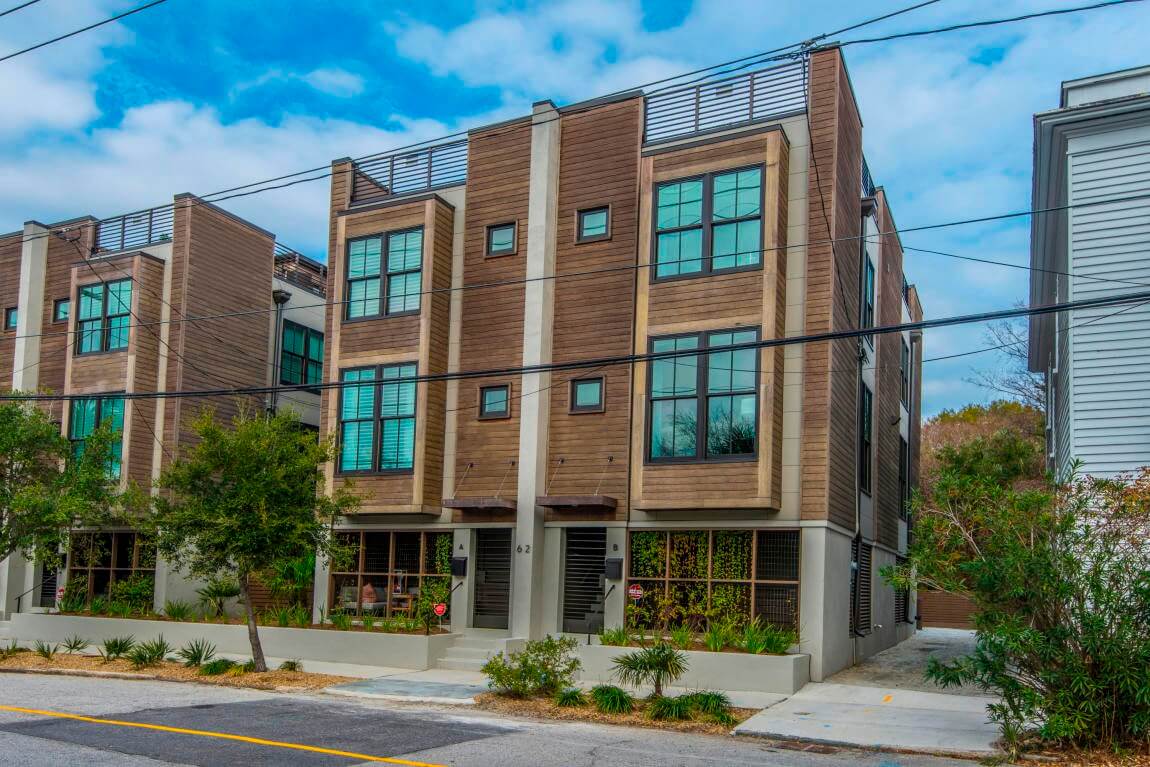

Application




Brand new


2 Years later


Brand new


2 Years later


Please click the following link (bimobject) for bim files.

https://www.bimobject.com/zh/dasso/product/xs12-100g2-pss-bamboo-cladding

https://www.bimobject.com/zh/dasso/product/xs18-ssl-5tg-pss-bamboo-cladding



Please check out these videos to know how to install the cladding!
